Tag nrho hydraulic core laum rig tshuab yog lub tshuab ua haujlwm ntau lub tshuab ua ke nrog dej thiab cua xyaum. Nws yog thawj zaug hauv Suav teb. Lub rig kis tau tus mob yog ob npaug piv nrog hydraulic kis tau tus mob, thiab lub hwj chim noj yog txo los ntawm 35%, uas yog ntau npaum thiab txuag zog. Lub drilling rig muaj kev kub ceev thiab tuaj yeem drilled nrog cov av nkos los daws qhov nyuaj ntawm drilling av huab cua DTH rauj. Lub tshuab tho txawv muaj lub zog loj thiab tuaj yeem xaub nce thiab nqis. DTH tuaj yeem siv tau thaum ua haujlwm nrog cov txheej pob zeb nyuaj, pob zeb, thiab pebble txheej hauv qab qhov dej tob. DTH rauj drilled. Lub drilling rig tuaj yeem tshwj xeeb hauv kev drilling, saib xyuas qhov dej, cua txias hauv huab cua, pob zeb diamond me ntsis wireline core drilling, thiab engineering geological kev tshawb nrhiav haujlwm.
Tag Nrho Hydraulic Core Drilling Rig Parameter
|
Qauv |
YGX-400 |
YGX-600 |
YGX-800 |
YGX-1000 |
|
Drilling qhov tob (M) |
180-400-500 |
200-600-650 |
400-800-1000 |
500-1000-1100 |
|
Rated siab (MPA) |
21 |
21 |
25 |
28 |
|
Rated ntws (L / min) |
168 |
192 |
260 |
300 |
|
Thaum tshav kub kub Dissipation hom |
Cua txias + dej txias |
|||
|
Cav Hom |
Yuchai |
Yuchai |
Yuchai |
Cummins |
|
Rated zog / ceev |
78kW/2400r/min |
92 kW/2400r/min |
92 kW/2400r/min |
PEB 154 kW 2400 r / min |
|
Drilling Angle (degree) |
0-90 |
45-90 |
45-90 |
45-90 |
|
Lifting Force (T) |
12 |
16 |
24 |
30 |
|
Pub zog (T) |
6 |
8 |
12 |
15 |
|
Hydraulic Pump Flow |
30-90(L/min) |
30-90(L/min) |
90-180(L/min) |
90-180(L/min) |
|
Hydraulic Mud twj tso kua mis zog |
4-7(MPA) |
4-7(MPA) |
4-7(MPA) |
4-7(MPA) |
|
Dimension |
4000 * 1900 * 1800 hli |
4000 * 2000 * 1800mm |
5500 * 2100 * 2000mm |
6000 * 2200 * 2400 hli |
|
Qhov hnyav |
4.3T |
4.5/5.5T |
6.5T |
7.5T |
6 Nta ntawm Tag Nrho Hydraulic Core Laum Rig
- Kev sib hloov ceev ntawm qhov drilling rig tuaj yeem ncav cuag 27-906r / min, thiab qhov siab tshaj plaws tso zis torque yog 9500N.m, uas tuaj yeem siv rau pob zeb diamond core drilling.
- Lub drilling rig muaj hydraulic laum ntauwd, hydraulic txhawb ob txhais ceg, winch, thiab lub taub hau fais fab tuaj yeem xaub nce thiab nqis. Lub pob zeb tawv tuaj yeem siv rau DTH rauj drilling.
- Lub rig siv lub tshuab ua haujlwm ntev ob-ceev nrawm thiab lub zog siv lub taub hau, thiab lub zog lub taub hau stroke yog 3500mm, uas yog siv los txhim kho kev ua haujlwm zoo drilling thiab txo qhov tshwm sim ntawm kev txhaws thiab hlawv cov xwm txheej.

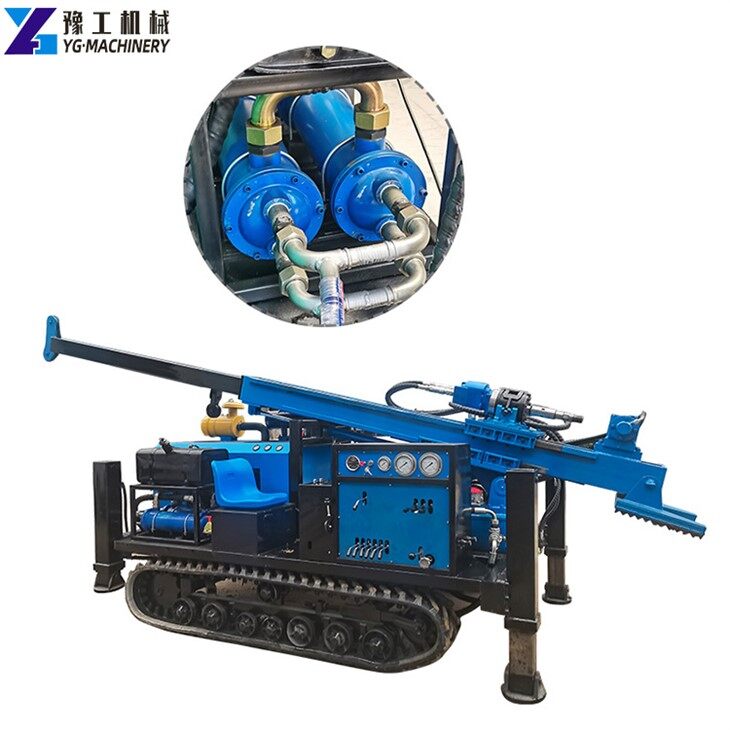

- Lub drilling rig siv ob lub twj tso kua mis rau roj. Thaum drilling, nws siv ib lub twj tso kua mis, thiab thaum nqa cov pas nrig, nws siv ob lub twj tso kua mis los ua ke; lub zog poob yog me me thiab lub sijhawm pabcuam luv luv.
- Lub tshuab drilling siv lub tshuab crawler chassis, stroke ntawm lub tog raj kheej outrigger yog 1.5m, thiab hydraulic siab txhawb nqa ob txhais ceg tuaj yeem ncab yooj yim thiab thauj mus rau hauv lub tsheb dawb, uas yooj yim rau kev tsiv chaw thiab kev thauj mus los.
- Qee qhov kev sib txuas ua haujlwm tau tshwj tseg hauv hydraulic system ntawm lub rig, thiab kev ua haujlwm tuaj yeem nthuav dav raws li cov kev xav tau ntawm cov neeg siv sib txawv.
